Direct Acting – Automation

M&M International UK range of direct acting solenoid valves for automation applications.

Solenoid Valves can be purchased online from the V-Flow Solutions web-shop and can be delivered to you on the next-day if you are in mainland UK (excl. highlands) or on a 1-2 day service (free delivery for orders over £200).

Purchase Solenoid Valves for Automation from V-Flow Solutions

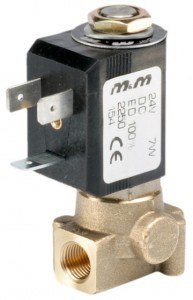

B297 Series – Automation – 2/2 Normally Closed

B297 - Direct Acting - Automation

B297 Series Specification Sheet

Specifications

  • – 1/8″
  • – Cv(gpm): 0.04 – 0.21
  • – Kv(m3/h): 0.03 – 0.18
  • – OPD Bar
  • — AC Voltages: 0 – 30
  • — DC Voltages: 0 – 28
  • – Orifice (mm): 1.0 – 3.0
  • – Seal material: FKM / EPDM

    • Features and Benefits

  • – Direct Acting
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Valve suitable for contact with food media as per the EEC Directives and Regulations. Please consult supplier for more details.
  • – Response time 5 to 25 ms

    • D237/238/239 Series – Automation – 2/2 Normally Closed

    D237 - Direct Acting - Automation

    D237 Series Specification Sheet

    Specifications

  • – 1/4″ to 1/2″
  • – Cv(gpm): 0.32 – 1.76
  • – Kv(m3/h): 0.27 – 1.50
  • – OPD Bar
  • — AC Voltages: 0 – 17
  • — DC Voltages: 0 – 12
  • – Orifice (mm): 3.0 – 10.5
  • – Seal material: FKM / EPDM / NBR

    • Features and Benefits

  • – Direct Acting
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Response time 5 to 25 ms

    • D301 Series – Automation – 2/2 Normally Closed

    D301 - Direct Acting - Automation

    D301 Series Specification Sheet

    Specifications

  • – Flanged
  • – Cv(gpm): 0.09 – 0.32
  • – Kv(m3/h): 0.08 – 0.27
  • – OPD Bar
  • — AC Voltages: 0 – 18
  • — DC Voltages: 0 – 18
  • – Orifice (mm): 1.5 – 3.0
  • – Seal material: FKM

    • Features and Benefits

  • – Direct Acting
  • – Zero pressure rated
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Response time 5 to 25 ms

    • RB297 Series – Automation – 2/2 Normally Open

    RB297 - Direct Acting - Automation

    RB297 Series Specification Sheet

    Specifications

  • – 1/8″
  • – Cv(gpm): 0.04 – 0.21
  • – Kv(m3/h): 0.03 – 0.18
  • – OPD Bar
  • — AC Voltages: 0 – 25
  • — DC Voltages: 0 – 25
  • – Orifice (mm): 1.0 – 3.0
  • – Seal material: FKM / EPDM

    • Features and Benefits

  • – Direct Acting
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Response time 5 to 25 ms
  • – Valve suitable for contact with food media as per EEC Directives and Regulations.

    • RD301 Series – Automation – 2/2 Normally Open

    RD301 - Direct Acting - Automation

    RD301 Series Specification Sheet

    Specifications

  • – Flanged
  • – Cv(gpm): 0.09 – 0.32
  • – Kv(m3/h): 0.08 – 0.27
  • – OPD Bar
  • — AC Voltages: 0 – 15
  • — DC Voltages: 0 – 15
  • – Orifice (mm): 1.5 – 3.0
  • – Seal material: FKM

    • Features and Benefits

  • – Direct Acting
  • – Zero pressure rated
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Response time 5 to 25 ms

    • DD362/363 Series – Automation – Diverting 3/2 Normally Open

    DD362 - Direct Acting - Automation

    DD362 Series Specification Sheet

    Specifications

  • – 1/4″
  • – Cv(gpm): 0.09 – 0.15
  • – Kv(m3/h): 0.08 – 0.13
  • – OPD Bar
  • — AC Voltages: 0 – 20
  • — DC Voltages: 0 – 20
  • – Orifice (mm):
  • — Orifice 1 to Orifice 2: 1.5 – 2.0
  • — Orifice 1 to Orifice 3: 2.5
  • – Seal material: FKM

    • Features and Benefits

  • – Direct Acting
  • – Zero pressure rated
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Response time 5 to 25 ms

    • GD362/363 Series – Automation – Universal Service 3/2 Normally Open

    GD362 - Direct Acting - Automation

    DD362 Series Specification Sheet

    Specifications

  • – 1/4″
  • – Cv(gpm): 0.15
  • – Kv(m3/h): 0.13
  • – OPD Bar
  • — AC Voltages: 0 – 8
  • — DC Voltages: 0 – 7
  • – Orifice (mm):
  • — Orifice 1 to Orifice 2: 2.0
  • — Orifice 1 to Orifice 3: 2.0
  • – Seal material: FKM

    • Features and Benefits

  • – Direct Acting
  • – Zero pressure rated
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Response time 5 to 25 ms

    • RB397 Series – Automation – 3/2 Normally Open

    RB397 - Direct Acting - Automation

    RB397 Series Specification Sheet

    Specifications

  • – 1/8″
  • – Cv(gpm): 0.04 – 0.25
  • – Kv(m3/h): 0.03 – 0.21
  • – OPD Bar
  • — AC Voltages: 0 – 15
  • — DC Voltages: 0 – 12
  • – Orifice (mm): 1.0 – 3.0
  • – Seal material: FKM / EPDM

    • Features and Benefits

  • – Direct Acting
  • – Zero pressure rated
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Valve suitable for contact with food media as per the EEC Directives and Regulations.
  • – Response time 5 to 25 ms

    • SB397 Series – Automation – 2nd Service 3/2 Normally Open

    SB397 - Direct Acting - Automation

    SB397 Series Specification Sheet

    Specifications

  • – 1/8″
  • – Cv(gpm): 0.05 – 0.07
  • – Kv(m3/h): 0.04 – 0.06
  • – OPD Bar
  • — AC Voltages: 0 – 6
  • — DC Voltages: 0 – 3
  • – Orifice (mm):
  • — Orifice 1 to Orifice 2: 1.2 – 1.5
  • — Orifice 1 to Orifice 3: 1.7
  • – Seal material: FKM

    • Features and Benefits

  • – Direct Acting
  • – Zero pressure rated
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Valve suitable for contact with food media as per the EEC Directives and Regulations.
  • – Response time 5 to 25 ms

    • SD362 Series – Automation – 2nd Service 3/2 Normally Open

    SD362 - Direct Acting - Automation

    SD362 Series Specification Sheet

    Specifications

  • – 1/4″
  • – Cv(gpm): 0.09 – 0.24
  • – Kv(m3/h): 0.08 – 0.20
  • – OPD Bar
  • — AC Voltages: 0 – 15
  • — DC Voltages: 0 – 15
  • – Orifice (mm):
  • — Orifice 1 to Orifice 2: 1.5 – 2.5
  • — Orifice 1 to Orifice 3: 1.5 – 2.5
  • – Seal material: FKM

    • Features and Benefits

  • – Direct Acting
  • – Zero pressure rated
  • – Robust construction for industrial applications
  • – Stainless Steel AISI 430F operators with low residual magnetism
  • – Coils tested 100% in compliance to RoHS directive and to relevant international standards
  • – High quality seal materials
  • – Response time 5 to 25 ms

    • If you would like some help in finding or selecting a valve please get in touch with our technical team.

    How you can reach them:

    Telephone: 01234 855888

    or

    Email: sales@v-flowsolutions.co.uk
